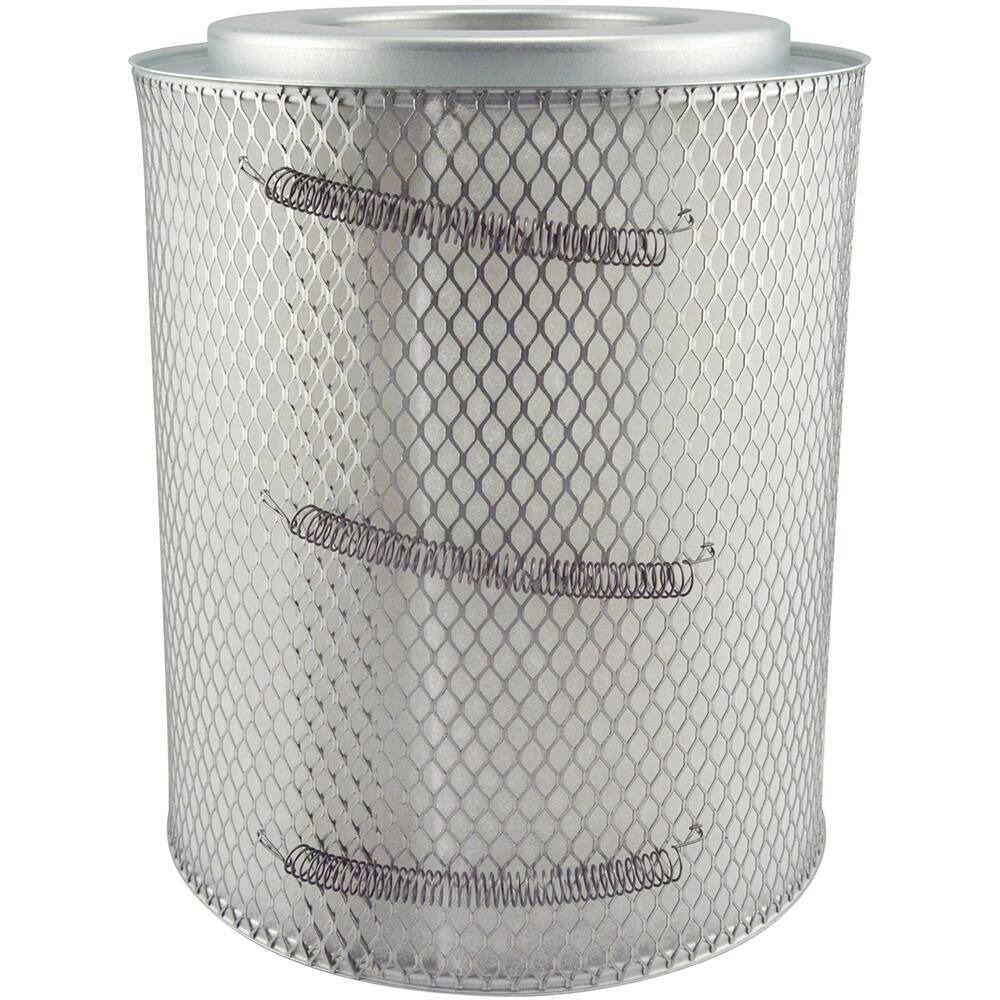

DELUXE 486AIR AIR CROSS REFERENCE

AX20294

Air, Dual-Stage Element

Technical Specifications:

Thread (MM)		-
Thread (Inches)		-
Per Inch		-
Length (Inches)		11 19/32
Length (MM)		294.5
Width (Inches)		-
Width (MM)		-
Height (Inches)		-
Height (MM)		-
Outlet		-
OD (Inches)		9 9/16
OD (mm)		242.9
OD2 (Inches)		-
OD2 (MM)		-
ID (Inches)		5 1/8
ID (MM)		130.2
Package quantity:		1
UPC:		-
ID_BOTTOM_MM:		-
ID_TOP_MM:		-
MAX_TEMP:		-
MICRON_RATING:		-
OD_BOTTOM_MM:		-
OD_TOP_MM:		-
BETA:		-
CENTERTUBE:		-
OPERATING PRESSURE:		-
MAX:		-
FILTER_RATING:		-
ENDCAP:		-
FLOW:		-
OUTER_JACKET:		-
PLATING:		-
Note:		Diamond Reo Trucks; Allis Chalmers Equipment
SEAL MATERIAL:		-
Efficiency 1:		-
Efficiency 2:		-
Filter Rating Microns:		-
Media:		-
Flow Direction:		-
Collapse Pressure:		-
Temperature Range:		-
Replaces:		Allis Chalmers 4051918; Hough 165935-H1
