FLEETGUARD HF7017 HYDRAULIC FILTER CROSS REFERENCE

HX39020

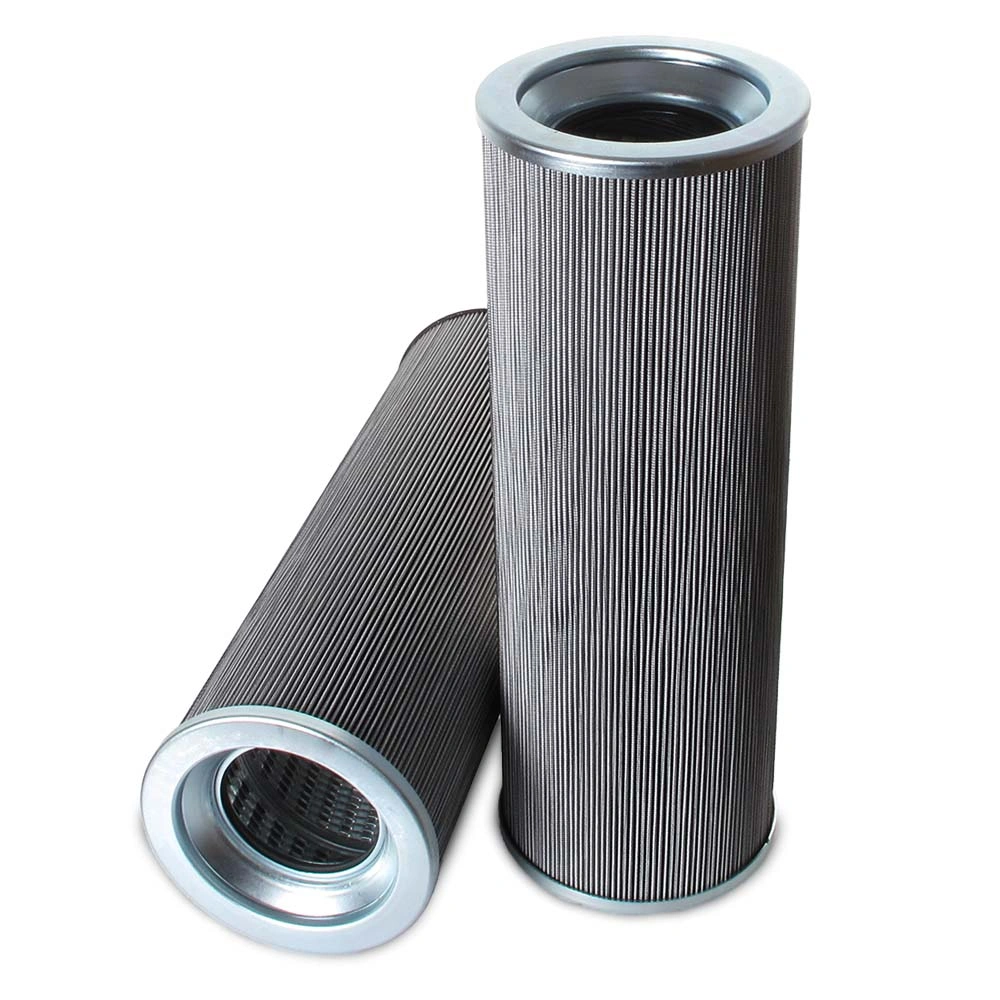

Wire Mesh Supported Element

Technical Specifications:

Thread (MM)
Thread (Inches)
Per Inch
Length (Inches)		16 7/8
Length (MM)		428.6
Width (Inches)
Width (MM)
Height (Inches)
Height (MM)
Outlet
OD (Inches)		6
OD (mm)		152.4
OD2 (Inches)
OD2 (MM)
ID (Inches)		3 1/4
ID (MM)		82.6
Package quantity:
UPC:
ID_BOTTOM_MM:		-
ID_TOP_MM:		-
MAX_TEMP:		-
MICRON_RATING:		-
OD_BOTTOM_MM:		-
OD_TOP_MM:		-
BETA:		-
CENTERTUBE:		-
OPERATING PRESSURE:		-
MAX:		-
FILTER_RATING:		-
ENDCAP:		-
FLOW:		-
OUTER_JACKET:		-
PLATING:		-
Note:		CATERPILLAR
SEAL MATERIAL:		Nitrile
Efficiency 1:		5┬Á @ ╬▓200
Efficiency 2:		7┬Á @ ╬▓1000
Filter Rating Microns:		-
Media:		Glass Fiber
Flow Direction:		OUT-IN
Collapse Pressure:		10 BAR
Temperature Range:		-30 - +100┬░C
Replaces:		CATERPILLAR 3I0654
