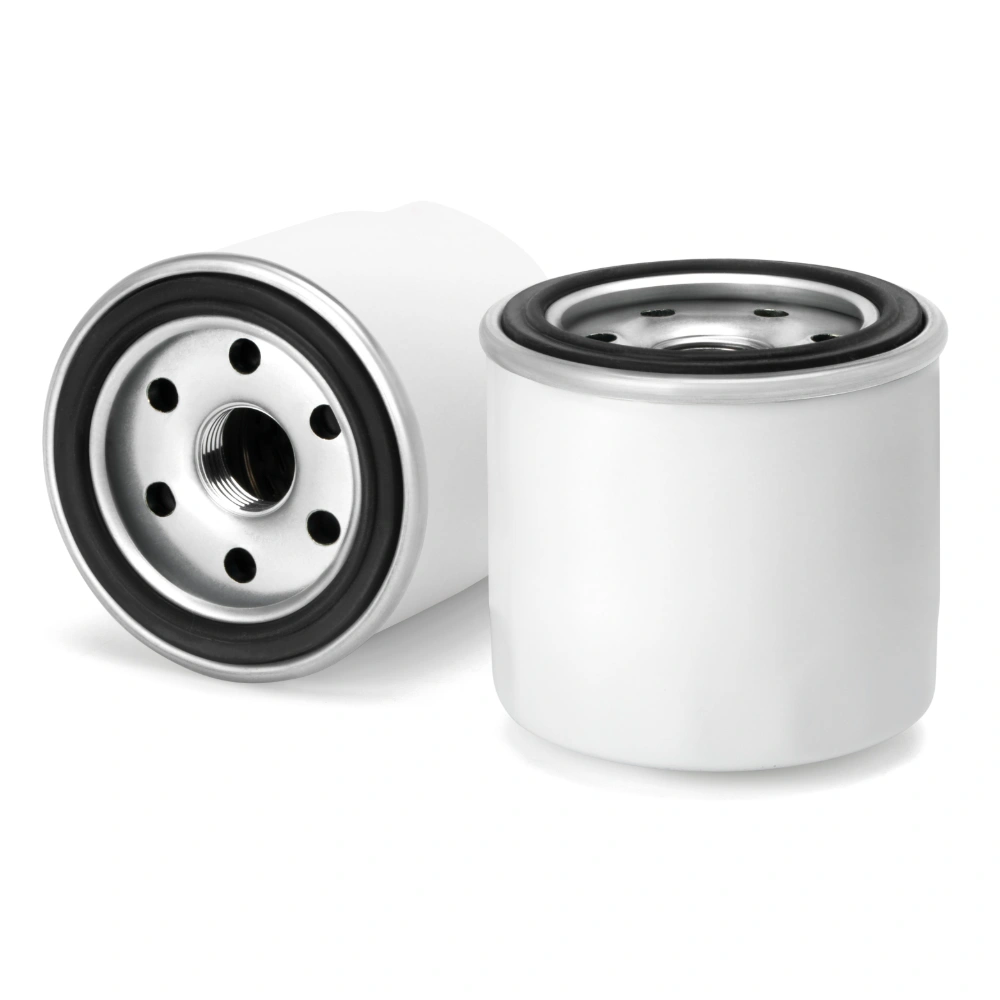

CARQUEST 94118 OIL FILTER CROSS REFERENCE

LX13657

Spin-On

Technical Specifications:

Thread (MM)		M20 x 1.5
Thread (Inches)		-
Per Inch		-
Length (Inches)		3 7/16
Length (MM)		87.25
Width (Inches)		-
Width (MM)		-
Height (Inches)		-
Height (MM)		-
Outlet		-
OD (Inches)		3 1/32
OD (mm)		77.0
OD2 (Inches)		-
OD2 (MM)		-
ID (Inches)		-
ID (MM)		-
Package quantity:		12
UPC:		-
ID_BOTTOM_MM:		-
ID_TOP_MM:		-
MAX_TEMP:		-
MICRON_RATING:		-
OD_BOTTOM_MM:		-
OD_TOP_MM:		-
BETA:		-
CENTERTUBE:		-
OPERATING PRESSURE:		-
MAX:		-
FILTER_RATING:		-
ENDCAP:		-
FLOW:		-
OUTER_JACKET:		-
PLATING:		-
Note:		Komatsu, Yanmar Engines
SEAL MATERIAL:		-
Efficiency 1:		(99%) 39 micron
Efficiency 2:		-
Filter Rating Microns:		-
Media:		Cellulose
Flow Direction:		-
Collapse Pressure:		6.9 bar (100 psi)
Temperature Range:		-
Replaces:		Isuzu5864015150; Komatsu YM12915035153
